The BA310 for use in Universities, Clinics, Laboratories, and any other life science or medical application. Using Motic's Colour Corrected Infinity Optics (CCIS®) with EC Plan Achromats, this model's full Koehler configuration provides maximum illumination quality for even the most demanding samples. The BA310 is also upgradeable to include additional contrast methods and discussion devices.
The BA310 Elite model introduces a rackless stage , an extended travel range of 80x55mm and a new, specimen holder that allows a large throughput of samples. Lighting options are easily interchangeable with a 6V/30W Halogen bulb and LED modules of different colour temperatures (4500K, 6000K), accepted by the Halogen lamp socket.
New LED Fluorescence Modules ensure maximum efficiency in Fluorescence excitation with a plug and play operation. A convenient intensity adjustment protects the sample from bleaching whilst Motic’s Fluorescence illuminator contains an LED light source as well as a selected filter combination with excitation, dichroic and barrier filter.

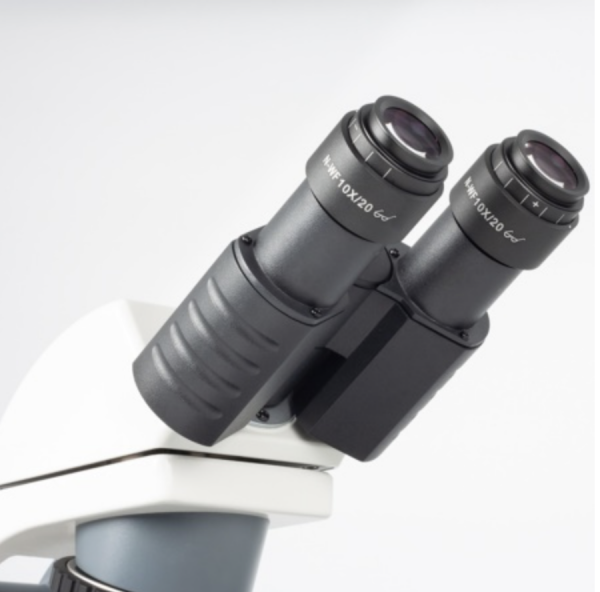

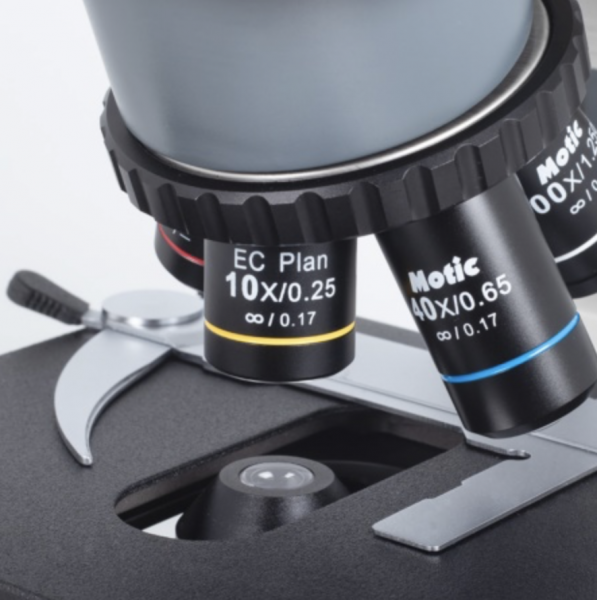

- Binocular or Trinocular head Siedentopf type, 30° inclined, 360°swivelling, 360° rotating; Widefield high eye point eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces; Reversed quintuple revolving nosepiece; CCIS EF-N Plan Achromatic objectives EC PL 4X, 10X, 40X S, 100X S-oil; Coaxial coarse and fine focusing system with tension adjustment; Built in low position coaxial mechanical stage (right-hand control); Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slot; 3W LED illumination with intensity control; Universal power supply 100-240V (CE);45mm blue filter; Immersion oil (5mL); Power cord; Allen key; Thumb screw; Vinyl dust cover. MIC2938 Includes a Built-in Digital unit with the same specifications as the BA310 Binocular but with a Built-in digital camera CMOS ½" chip, 3MP (2048 x 1536 pixels) with USB2.0 output and Motic Images Plus 2.0 for PC and MAC
BA310 Phase Model
- As BA310 but with 4X/0.10 (WD 15.9mm), PH10X/0.25 (WD 17.4mm), PH40X/0.65 (WD 0.5mm), PH100X/1.25 (WD 0.15mm) objectives and Phase contrast 5 position turret condenser N.A. 0.90 (BF, DF, Ph1, Ph2, Ph3) for phase contrast capability.
BA310 ELITE Model

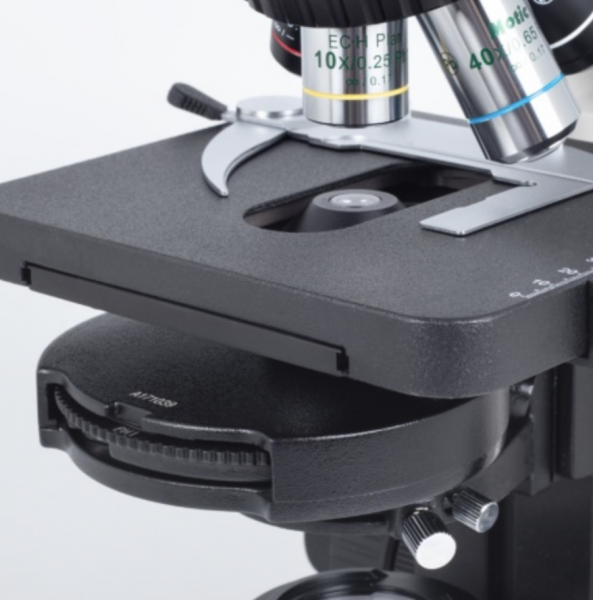

- As BA310 but with rackless mechanical stage (right-hand control) with improved stage size (180 x 170mm); Quartz halogen 6V/30W or 3W LED illumination Full interchangeable on the same unit (No Built-in Digital unit available)
